Product Description

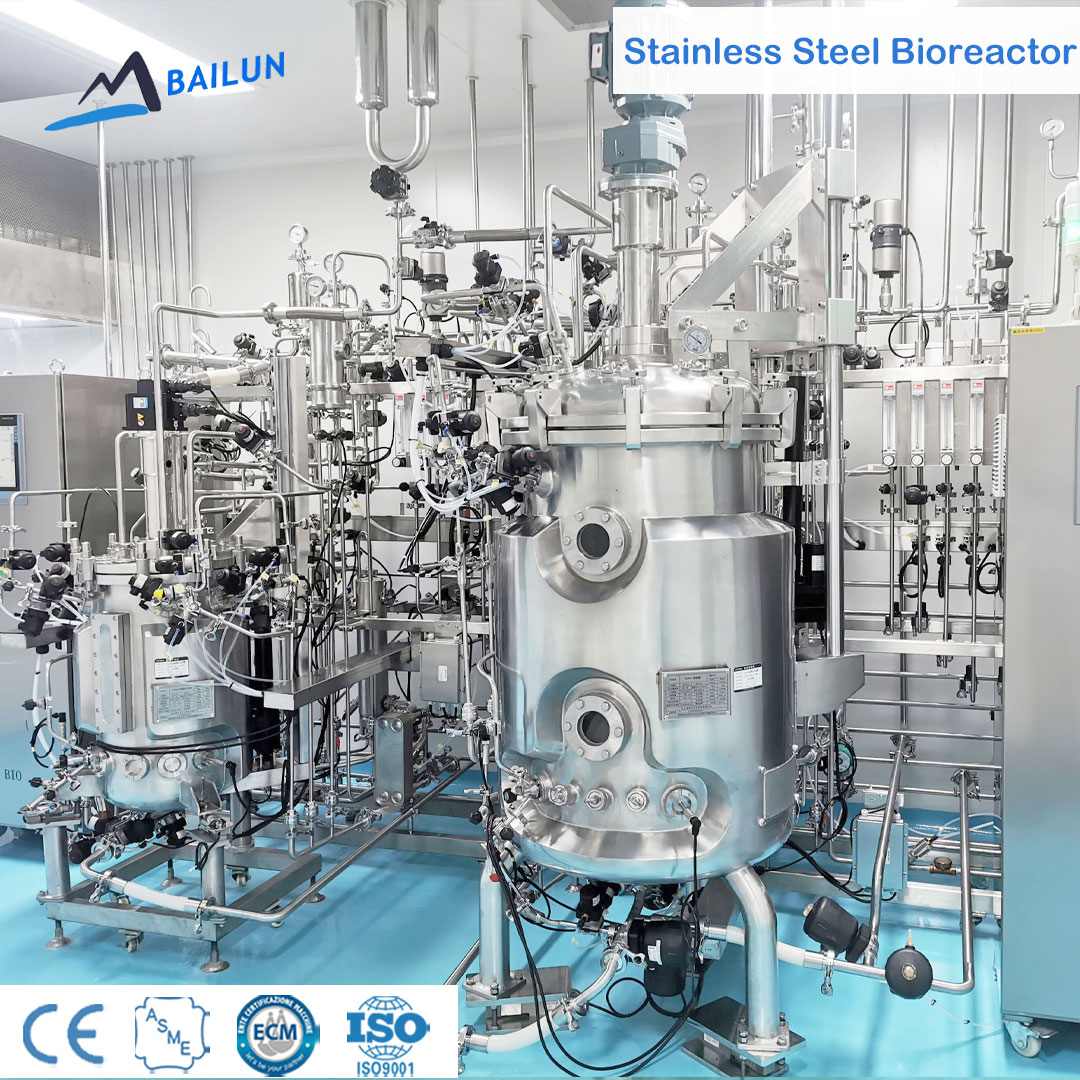

Bioreactor Cell Culture with a 35000l Capacity Single Cell Protein Fermentation Plant Fermentor Reactor 200l SS Fermenter
Bioreactor System Overview
Fermentation Control Panel
Stainless Steel Vessel Details
Piping and Valves Configuration
Top Plate Assembly
Technical Specifications
Mammalian Cell Culture SS Bioreactor Main Parameters
Volume 5L 10L 15L 20L 30L 50L 100L 150L 200L 250L 300L 500L 700L 1000L 2000L 5000L ...10KL
Tank Material 316L Stainless Steel/304 for Jacket With Insulation, Surface Polish Ra0.2-0.4um.
Basic Configuration Auto Control Temperature/Agitation/PH/Dissolved Oxygen/Defoaming/Feeding/Tank Pressure/Tank Weighting/SIP/Harvest/Exhaust/Four gases (Air, Oxygen, Nitrogen and CO2), CIP by spray ball.
Optional Functions Remote Control, Mass Flow Meter(Auto Control Gas), Exhaust Heating, Exhaust Filter, Gas(CO2) Exhaust Analysis, Level Sensor, Turbidity(OD) Sensor, ORP Sensor, Weight System, Live Cell Sensor（Biomass）, Printing, Siemens Touch Screen, Double Mechanical Seal, 4-Valves-Group for Feeding, Bottom Valve Auto, ASME Certificate, CSA Certificate, Air Flow 2vvm, etc.

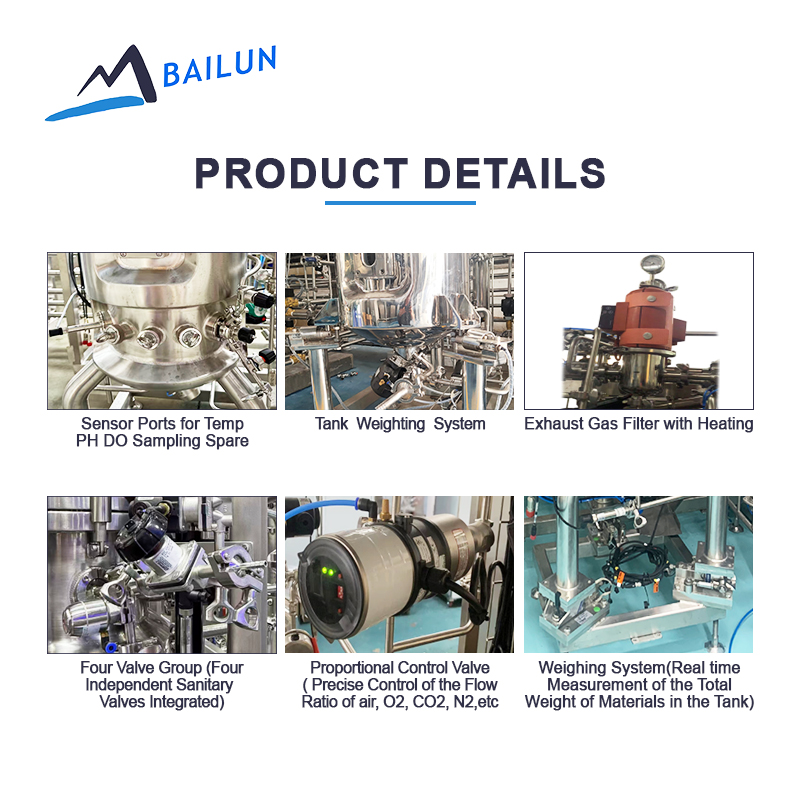

Product Detail & Manufacturing Showcase

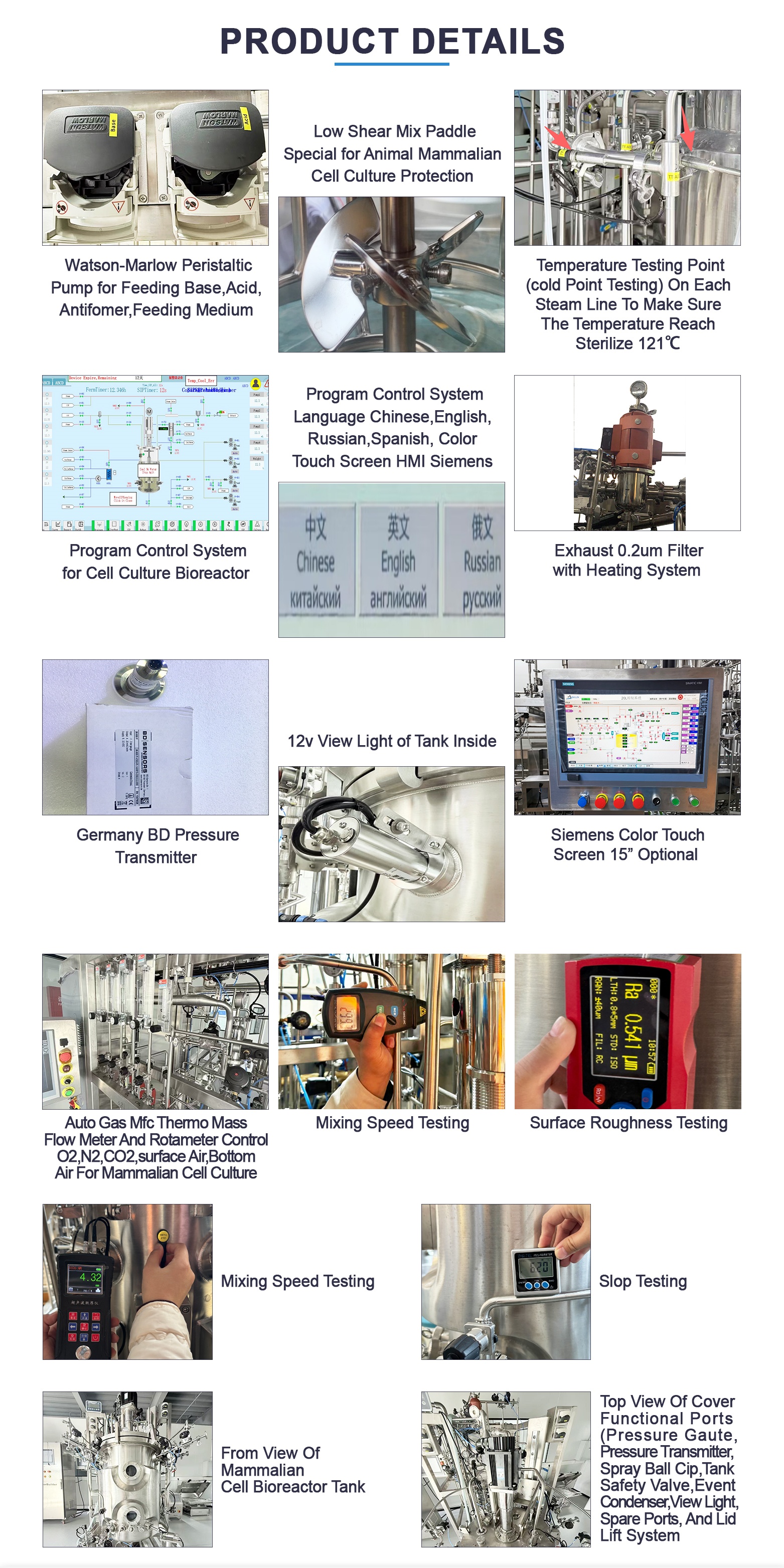

Interior Finish and Impeller
Sensors and Ports Connectors
Modular Piping Pipeline Skid
Control Cabinet Internal Structure

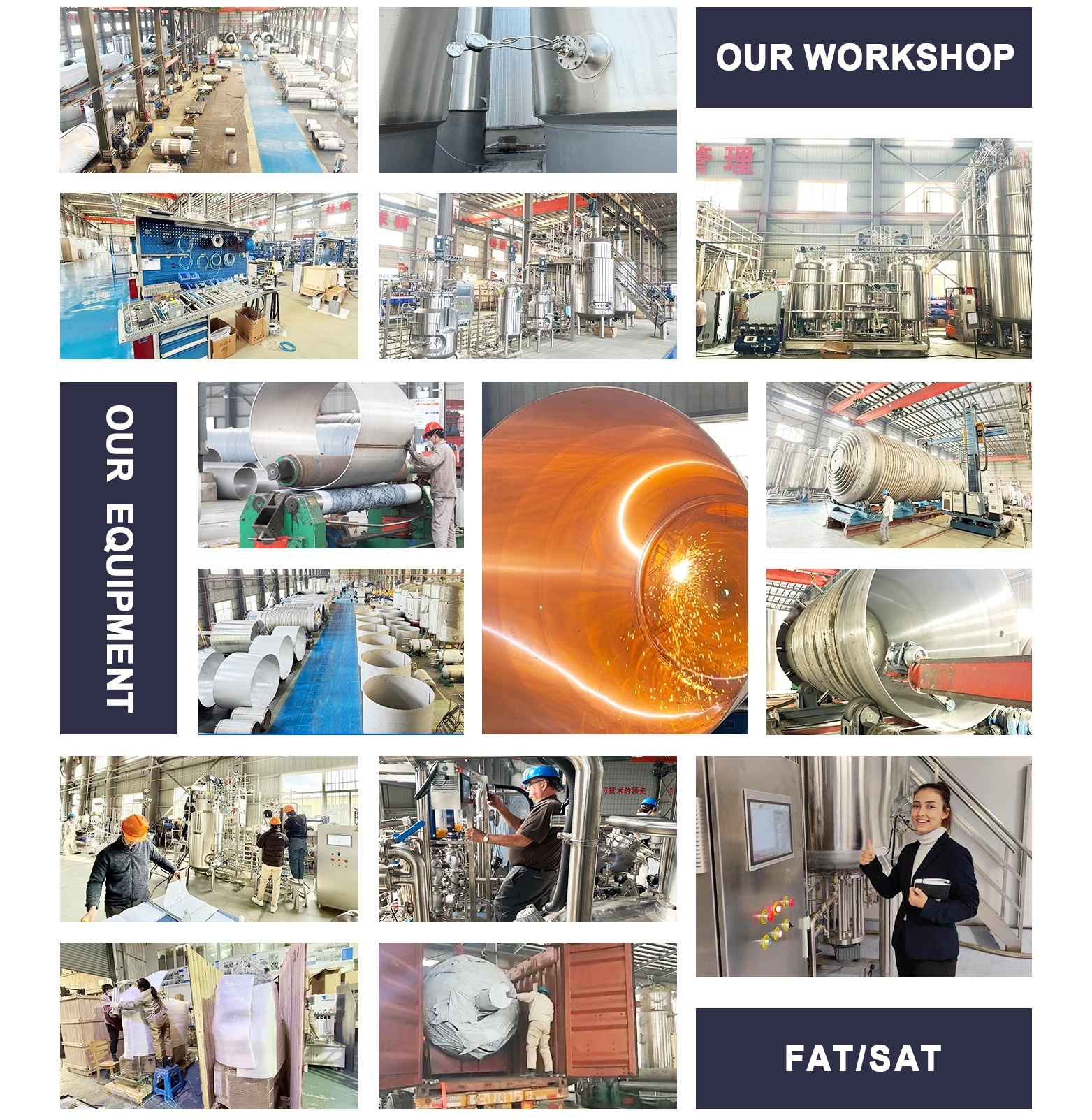

Bioreactor Assembly Workshop
Industrial Fermentation Plant Layout
Valves and Control Panel Interface
Pneumatic Valve Assembly Detail
Top Mounted Agitator Motor
Control System Terminal Cabinet
Large Scale Cell Culture Vessel
Complete Fermentor Skid System
Frequently Asked Questions (FAQ)
What volume options are available for the SS bioreactor system?
The system offers highly flexible volume options. They range from small-scale sizes of 5L, 10L, 15L, 20L, 30L, 50L, up to large industrial capacities like 100L, 500L, 1000L, 2000L, 5000L, and up to 10KL, with capabilities reaching up to a 35,000L capacity.
What material specifications are used for the fermentation tank?
The tank contact parts are constructed from premium 316L Stainless Steel, while the jacket is made of 304 Stainless Steel with high-quality insulation. The inner surface is polished to Ra 0.2 - 0.4µm to ensure compliance with strict sanitary requirements.
What automatic controls are included in the basic configuration?
The basic setup features automatic control for Temperature, Agitation speed, pH levels, Dissolved Oxygen (DO), Defoaming, Feeding, Tank Pressure, Tank Weighting, SIP (Sterilization in Place), Harvest operations, Exhaust, and regulation for four gases (Air, Oxygen, Nitrogen, and CO2). CIP (Clean in Place) is also integrated via a high-efficiency spray ball.
What optional sensors and monitoring tools can be integrated?
You can customize the bioreactor with optional features such as remote control units, Mass Flow Meters for auto gas control, Exhaust Heating/Filters, Gas (CO2) Exhaust Analysis systems, Level Sensors, Turbidity (OD) Sensors, ORP Sensors, Weight Systems, and Live Cell (Biomass) Sensors.
Does this system support international regulatory certificates?
Yes, our stainless steel fermenter systems can be customized to comply with international standards and certifications, including ASME Certificate and CSA Certificate options as required by your manufacturing specifications.
Is the user interface based on reliable industrial controls?
Yes, the optional configurations support Siemens Touch Screen interfaces, double mechanical sealing systems, auto bottom valves, and printer integrations for comprehensive process tracking and reliable parameter controls.
